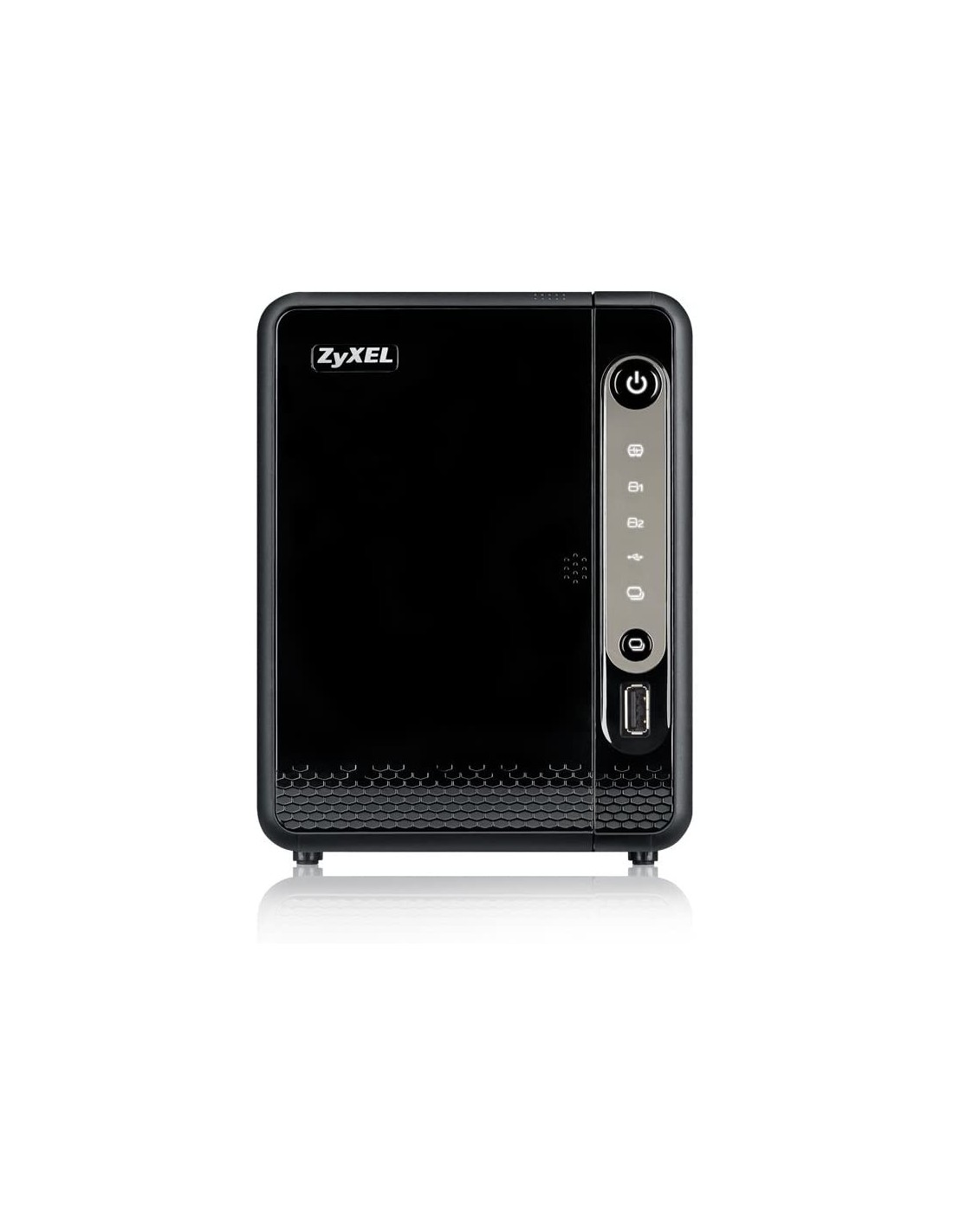

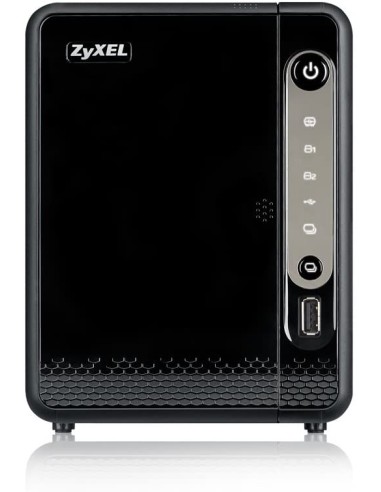

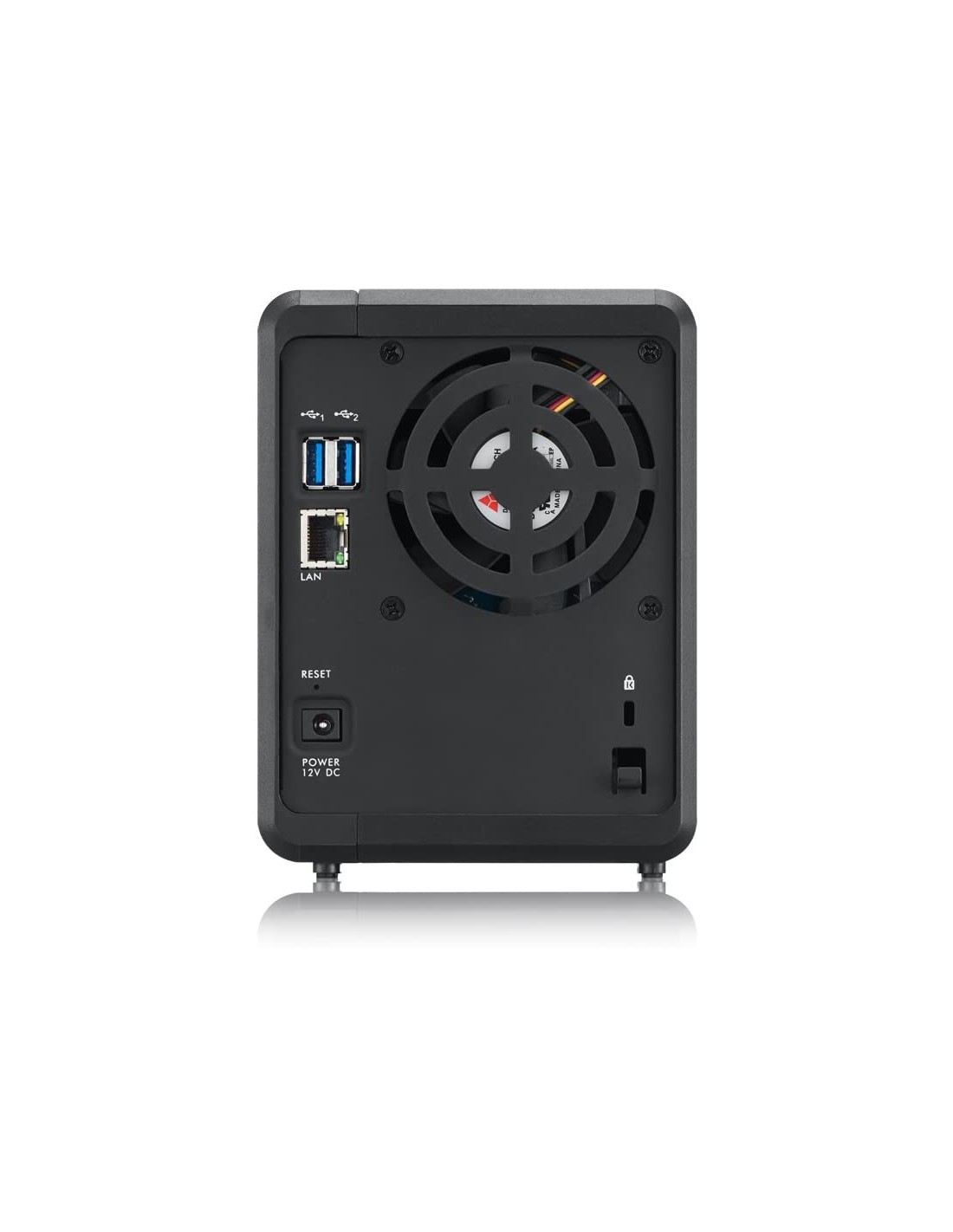

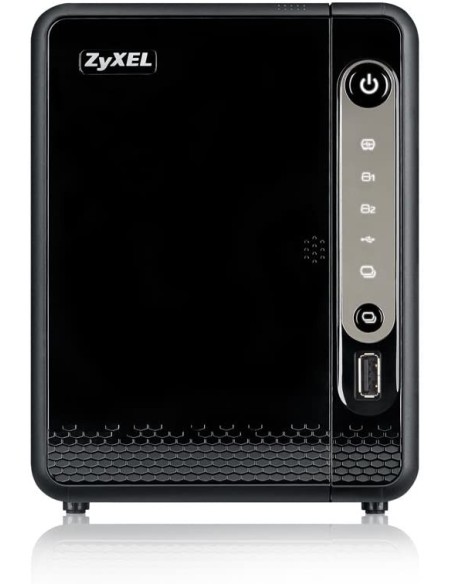

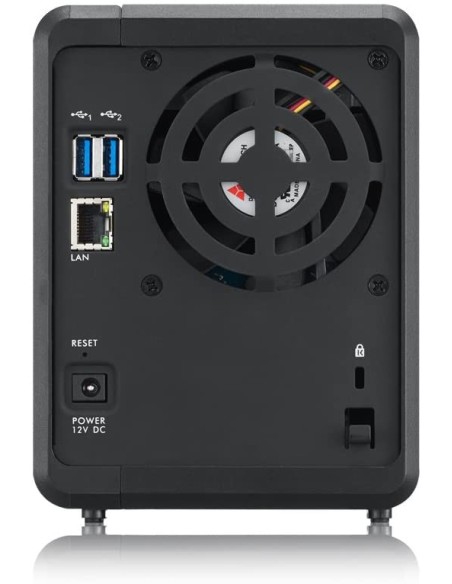

Zyxel NAS326 Servidor NAS 2 Bahías NAS326-EU0101F

NAS 2 bahías Dual Core

Cloud Storage Device



Specifications System Specifications Networking

• Network protocol:

¦ CIFS/SMB for Windows

¦ NFS for Linux/Unix

¦ AFP for Mac

¦ DHCP client

¦ PPPoE ¦ Network Time Protocol (NTP)

¦ iSCSI

• Network applications:

¦ Media server: - Twonky media server with DLNA 1.5 and UPnP AV - iTunes server - Logitech media server - Photo album server • Web service: ¦ WebDAV

¦ FTP server

¦ phpMyAdmin/MySQL/PHP

¦ RSS client & server ¦ Print server (CIFS) ¦ Remote access support (DyDNS) • iOS and Android application: ¦ ZyXEL Drive, zCloud, ownCloud • Network application management: ¦ User & group management ¦ Package management for setting up applications • Network security: ¦ Support HTTPS and FTPES (FTP over explicit TLS/SSL) ¦ Encrypted NAS to NAS remote replication ¦ Encrypted NAS to external disk archive backup Data Management • Backup support: ¦ One-touch copy/sync button for external USB capable devices backup ¦ Backup planner: - Instant/Scheduled backup - NAS to NAS synchronization/archive backup - Rsync - NAS to external USB hard disk backup ¦ Google Drive, Dropbox, Memopal, ownCloud, SynBackupfree, Cyberduck and NetDrive support ¦ Apple Time Machine support • Download/Upload support: ¦ Auto-download from FTP/HTTP/P2P download service (Torrent file supported)

¦ Scheduled download

¦ Auto-upload photos and videos to YouTube/ Flickr/FTP server • File system support: ¦ Internal HDD: EXT4 ¦ External HDD: NTFS, EXT2, EXT3, EXT4, FAT32, HFS+ (read only), exFAT System Management • JBOD, RAID 0/1 • Online firmware upgrade • Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.) Power and Thermal Management • Power control: ¦ Internal disk hibernation support ¦ Scheduled power on/off/reboot ¦ Wake-on-LAN support

¦ System automatically resume after power outage

¦ APC USB UPS monitoring and auto shutdown • Thermal management:

¦ Smart fan speed control ¦ High temperature alert/buzzer ¦ Auto shutdown while high temperature Minimum System Requ

irements • OS for utility: Windows XP onward, Mac OS X 10.5 onward • Browser: IE 11+, Firefox 20+, Google Chrome 37+, Safari 5+ Application Package Center • myZyXELcloud service: ¦ myZyXELcloud agent • Cloud application:

¦ ownCloud (Cloud synchronization server)

¦ Google Drive ¦ Dropbox ¦ Memopal • Download management: ¦ NZBGet (NZB file download management supported)

¦ Transmission (Torrent file supported) ¦ pyLoad (Download manager for many oneclick-hosting sites) • Additional: ¦ Gallery (The web-based application allows your NAS to host pictures) ¦ WordPress (Blogging tool and content management system) ¦ Tftp ¦ NFS ¦ Logitech media server (Stream audio system) ¦ PHP-MySQL-phpMyAdmin (MySQL administration tool) Hardware Specifications • CPU: Marvell Armada 380 1.3 GHz

• Memory: DDR3 512 MB • Two 2.5" or 3.5" SATA II hard disk interface supported up to 12 TB (6 TB x2) • One Gigabit Ethernet RJ-45 connector • Two USB 3.0 ports • One USB 2.0 port • Buttons: ¦ Power button ¦ Copy/Sync button ¦ Reset button • Smart fan design • Power consumption:

¦ Access mode: 28 watt (full loading: Internal HDD x2, External HDD x3) ¦ Hard disk spin-down mode: 5.5 watt • Power: ¦ Input: 100 - 240 V AC, 50/60 Hz

¦ Output: 12 V DC, 5 A Physical Specifications • Item dimensions (WxDxH): 207 x 164 x 123 mm (8.15" x 6.46" x 4.84") • Item weight: 1,257 g (2.77 lb.)

• Packing dimensions (WxDxH): 280 x 173 x 275 mm (11.02" x 6.81" x 10.82") • Packing weight: 2,260 g (4.99 lb.) Environmental Specifications Operating Environment

• Temperature: 0°C to 40°C (32°F to 104°F) • Humidity: 10% to 95% (Non-condensing) Storage Environment • Temperature: -30°C to 70°C (-22°F to 158°F)

• Humidity: 10% to 95% (Non-condensing) Certification • Safety: CE LVD, BSMI • EMC: CE, FCC class B, C-Tick, BSMI • Others: DLNA 1.5, UPnP Package Contents

• Network storage device (Hard disks not included) • Power supply and power cord • Ethernet cable • FindMe note • Quick start guide • Warranty card

• Hardware bag • Accessory pack
