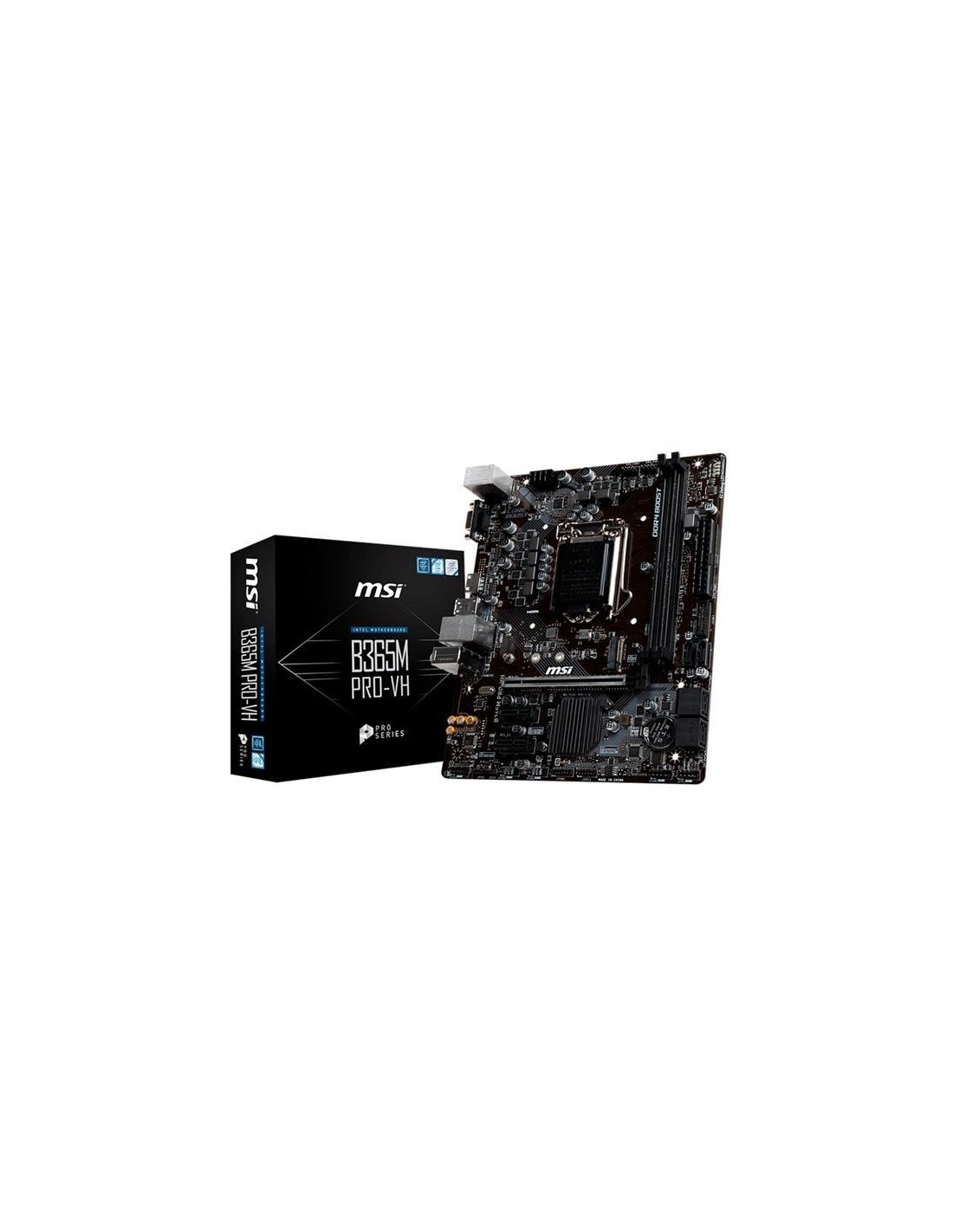

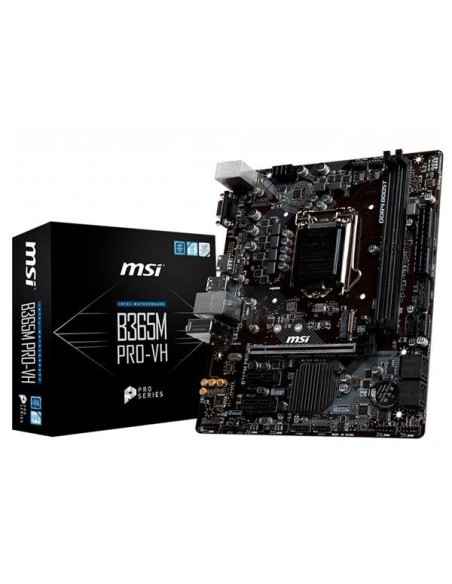

Placa Base Msi 1151 B365M Pro-Vh Lga

Especificaciones técnicas:
CHIPSET: INTEL B365
FORMATO: MICRO ATX
HDMI: SI
IMAGEN SALIDA: GRAFICOS EN CPU, D-SUB, HDMI
MEMORIA MAXIMA: 32 GB
MICROPROCESADOR INTEGRADO: NO
MULTI-GRAFICA: NO
Nº BANCOS DE MEMORIA: 2
Nº CONEXIONES SATA: 6
Nº USB 2.0: 2 TRASEROS, 4 INTERNOS
Nº USB 3.0: 4 TRASEROS, 2 INTERNO
PCI: 1 PCIe x16, 2 PCIe x1
RAID: SI
SATA 6GB/s: 6
SOCKET: INTEL LGA1151
SOPORTA OPTANE: SI
TECNOLOGIA DE MEMORIA: DDR4
TIPO DE RAID: 0,1,5,10
USB 3.0: SI
USB3.0 INTERNO: SI


PROCESSOR

Supports 9th/8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

CHIPSET

Intel® B365 Chipset

MEMORY

2x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer to Compatibility for more information on compatible memory
See supported memory

SLOTS

1 x PCIe 3.0 x16 slots
2 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
No display support when using the processor model with suffix F

STORAGE

Intel® B365 Chipset
6 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready2
The SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID


Intel® B365 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel® B365 Chipset
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Realtek® ALC887 Codec
7.1-Channel High Definition Audio

LAN

1 x Realtek RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports)
6 x SATA 6Gb/s connectors
1 x Clear CMOS jumper
2 x Front panel connectors
1 x Serial port connector
1 x Chassis Intrusion connector
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x Front panel audio connector
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x TPM module connector

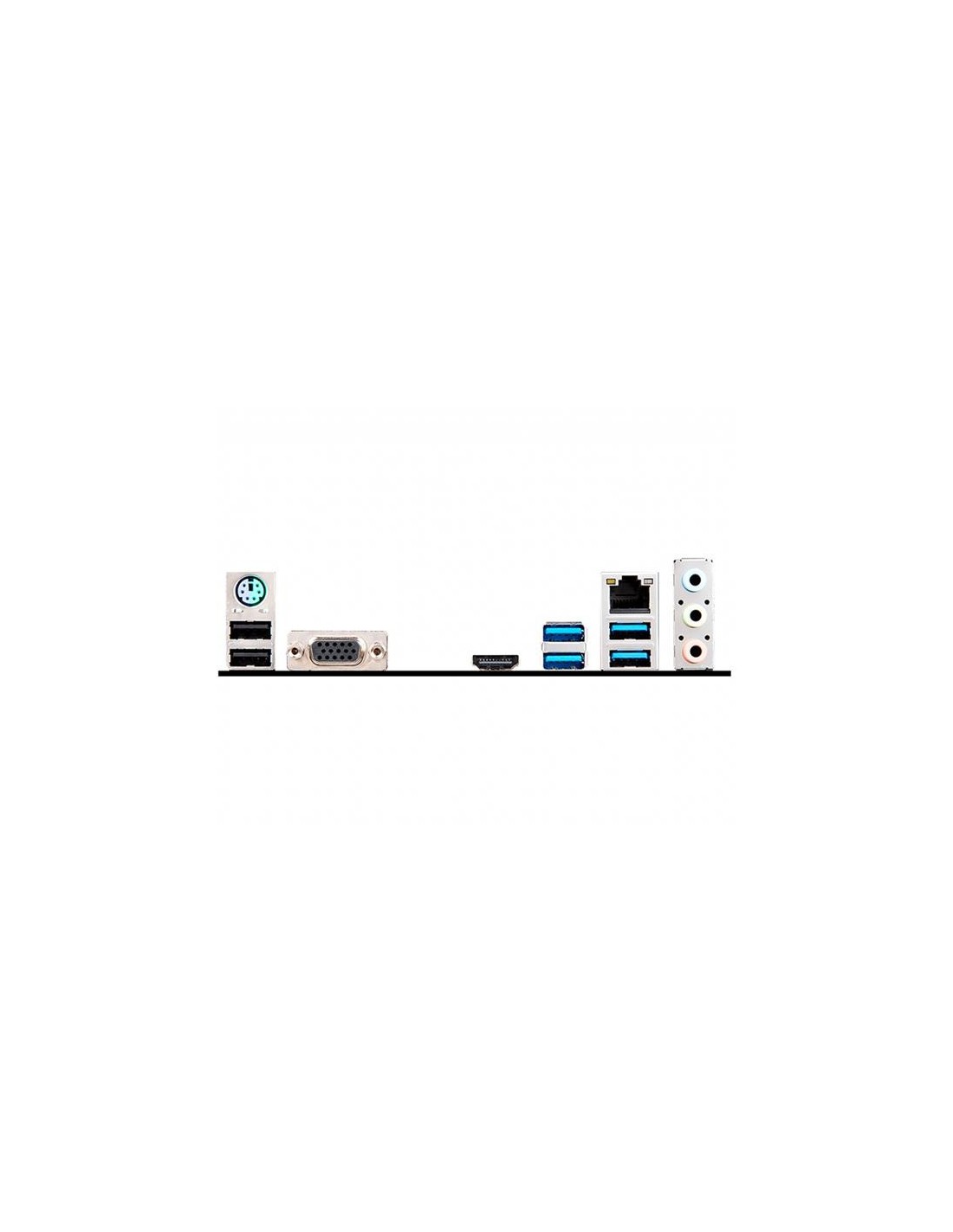

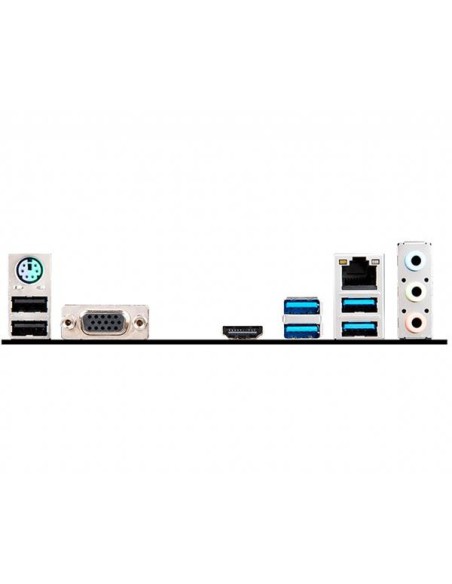

BACK PANEL PORTS

1x PS/2 Combo
1x VGA Port
1x LAN Port
1x HD Audio Connectors
2x USB 2.0 Ports
1x HDMI Port
4x USB 3.1 Gen1 Ports

DIMENSIONS

8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
Micro-ATX Form Factor

OPERATING SYSTEM

Support for Windows® 10 64-bit
