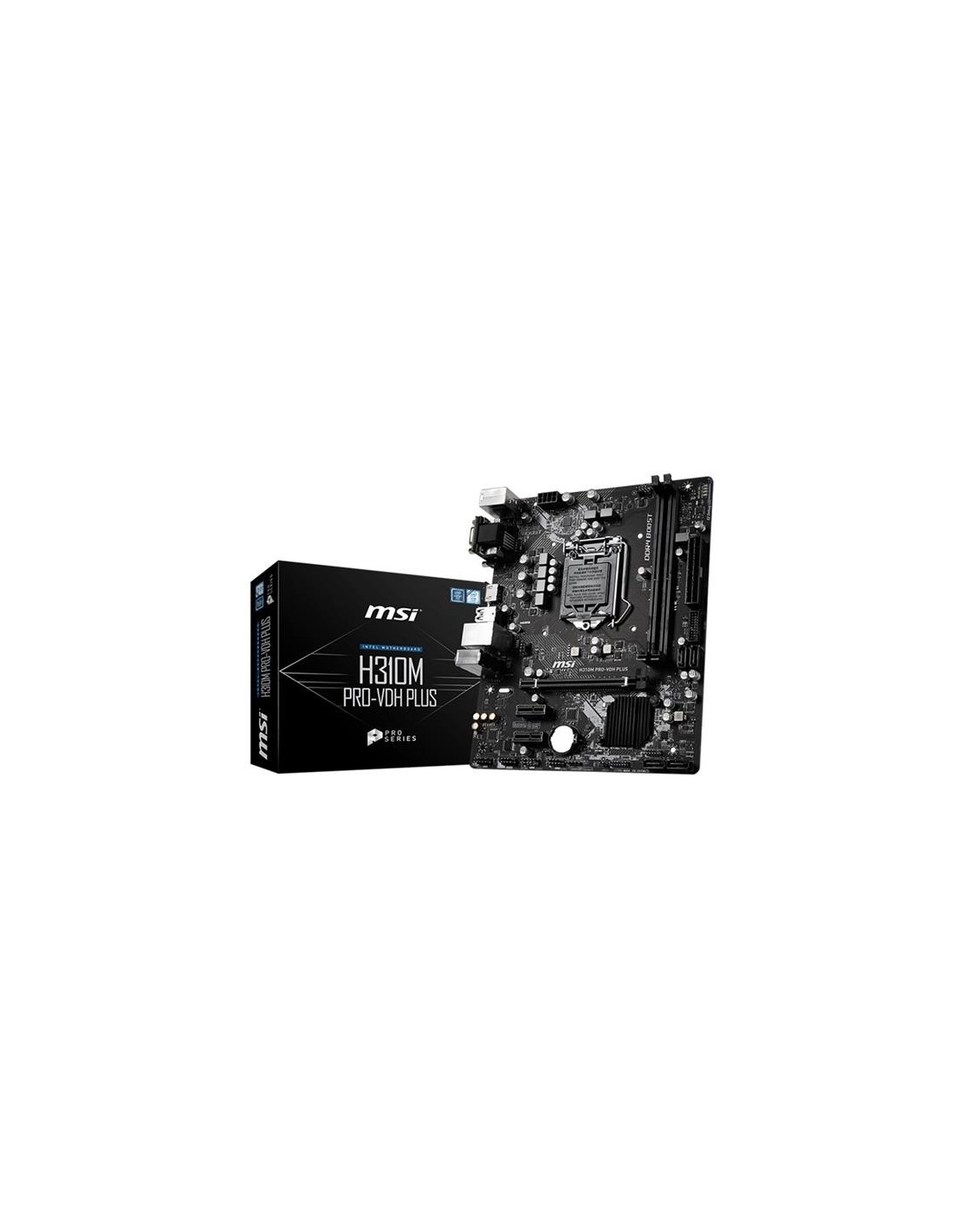

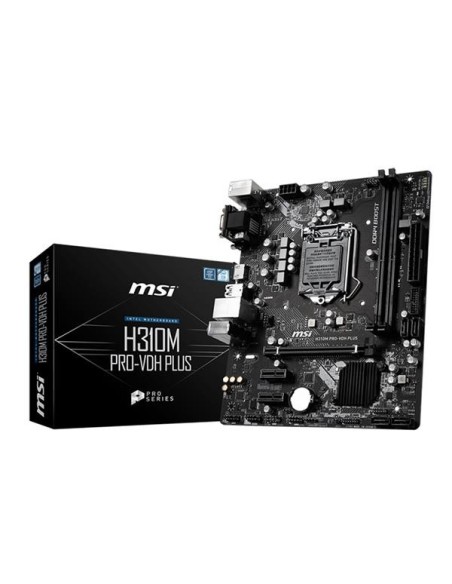

Placa base 1151 cf msi h310m pro-vdh plus matx-ddr4

processor
supports 8th generation intel® core? processors, pentium® gold and celeron® processors for socket lga1151

see supported processors

chipset1
this chipset is me11 firmware based and doesn’t feature sda3.0.
intel® h310 chipset

this chipset is me11 firmware based and doesn?t feature sda3.0.

memory
2 x ddr4 memory slots, support up to 32gb
supports ddr4 2666/ 2400/ 2133 mhz (by jedec)1
supports ddr4 2666/ 2400/ 2133 mhz (by xmp oc)1
supports dual-channel mode
supports non-ecc, un-buffered memory
supports intel® extreme memory profile (xmp)
2666 mhz for i7 and i5 processors only.
see supported memory

slots
1 x pcie 3.0 同 slot
2 x pcie 2.0 ࡧ slots

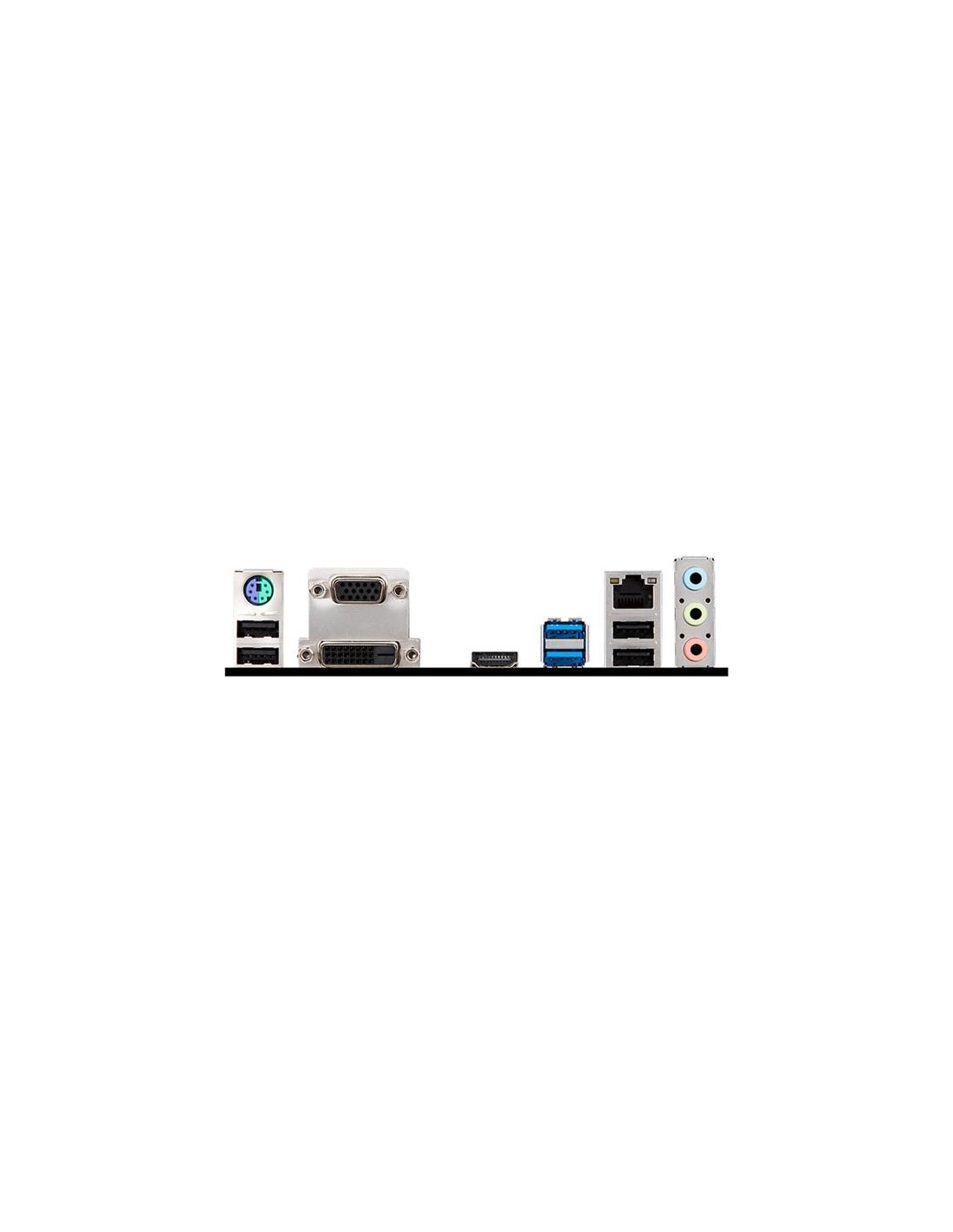

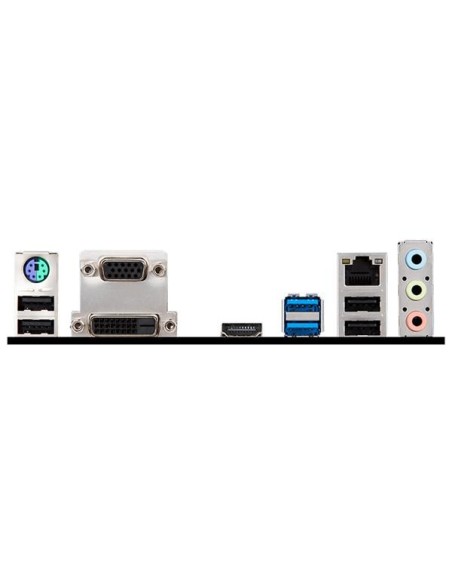

onboard graphics
1 x vga port, supports a maximum resolution of 2048�@50hz, 2048�@60hz, 1920�@60hz
1 x dvi-d port, supports a maximum resolution of 1920�@60hz
1 x hdmi? port, supports a maximum resolution of 4096�@30h
supports up to 2 displays simultaneously.
storage
intel® h310 chipset
4 x sata 6gb/s ports
supports intel® rapid storage technology
usb
intel® h310 chipset
4 x usb 3.1 gen1 (superspeed usb) ports (2 type-a ports on the back panel, 2 ports available through the internal usb connector)
6 x usb 2.0 (high-speed usb) ports (4 ports on the back panel, 2 ports available through the internal usb connector)
audio
realtek® alc887 codec
7.1-channel high definition audio
lan
1 x rtl8111h gigabit lan controller
internal connectors
1 × 24-pin atx main power connector
1 × 8-pin atx 12v power connector
4 x sata 6gb/s connectors
1 x usb 3.1 gen1 connector (supports additional 2 usb 3.1 gen1 ports)
1 x usb 2.0 connector (supports additional 2 usb 2.0 ports)
1 x clear cmos jumper
2 x front panel connectors
1 x serial port connector
1 x tpm module connector
1 x chassis intrusion connector
1 x front panel audio connector
1 × 4-pin cpu fan connector
1 × 4-pin system fan connector
