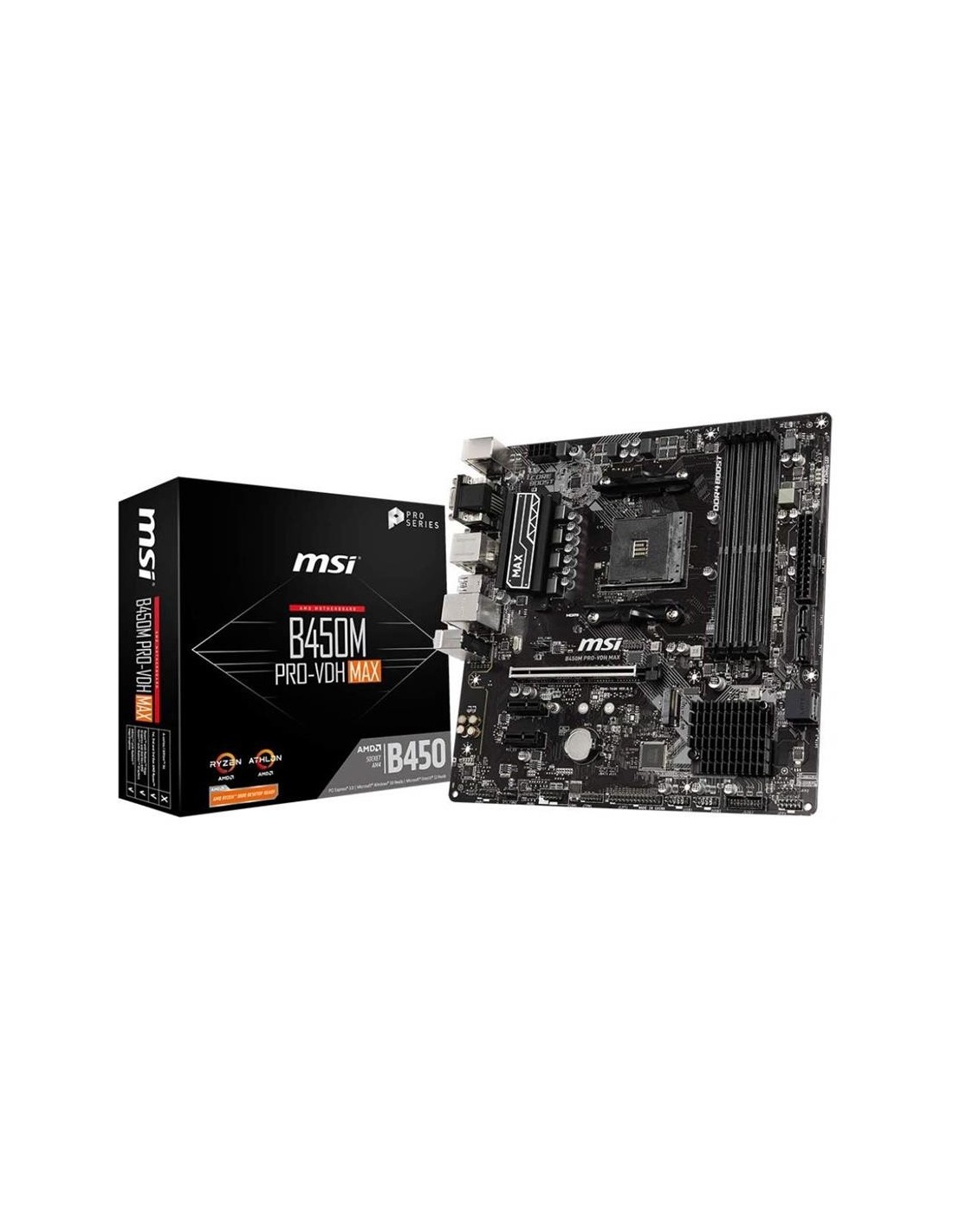

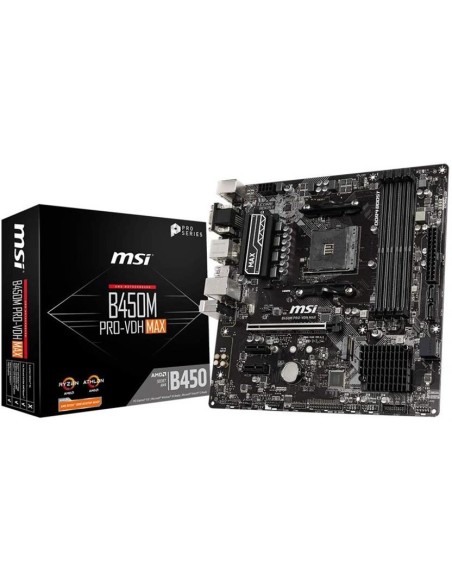

Placa Base Msi Am4 B450M Pro-Vdh Max

Especificaciones técnicas:
CHIPSET: AMD B450
FORMATO: MICRO ATX
HDMI: SI
IMAGEN SALIDA: GRAFICOS EN CPU, D-SUB, DVI-D , HDMI
MEMORIA MAXIMA: 64 GB
MICROPROCESADOR INTEGRADO: NO
MULTI-GRAFICA: NO
Nº BANCOS DE MEMORIA: 4
Nº CONEXIONES SATA: 4
Nº USB 2.0: 4 TRASEROS, 4 INTERNOS
Nº USB 3.2 Gen1: 4 TRASEROS, 2 INTERNOS
PCI: 1 PCIe x16, 2 PCIe x1
RAID: SI
SATA 6GB/s: 4
SOCKET: AMD AM4
SOPORTA OPTANE: NO
TECNOLOGIA DE MEMORIA: DDR4
TIPO DE RAID: 0,1,10
USB3.1 INTERNO: SI


Especificaciones:

PROCESSOR

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

See supported processors

CHIPSET

AMD® B450 Chipset

MEMORY

4 x DDR4 memory slots, support up to 64GB1
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
For AMD Other Processors
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Supports Dual Channel mode
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
Please refer www.msi.com for more information on compatible memory.
See supported memory

SLOTS

1 x PCIe 3.0 x16 slot
1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
Athlon™ with Radeon™ Vega Graphics support x4 mode
2 x PCIe 2.0 x1 slots

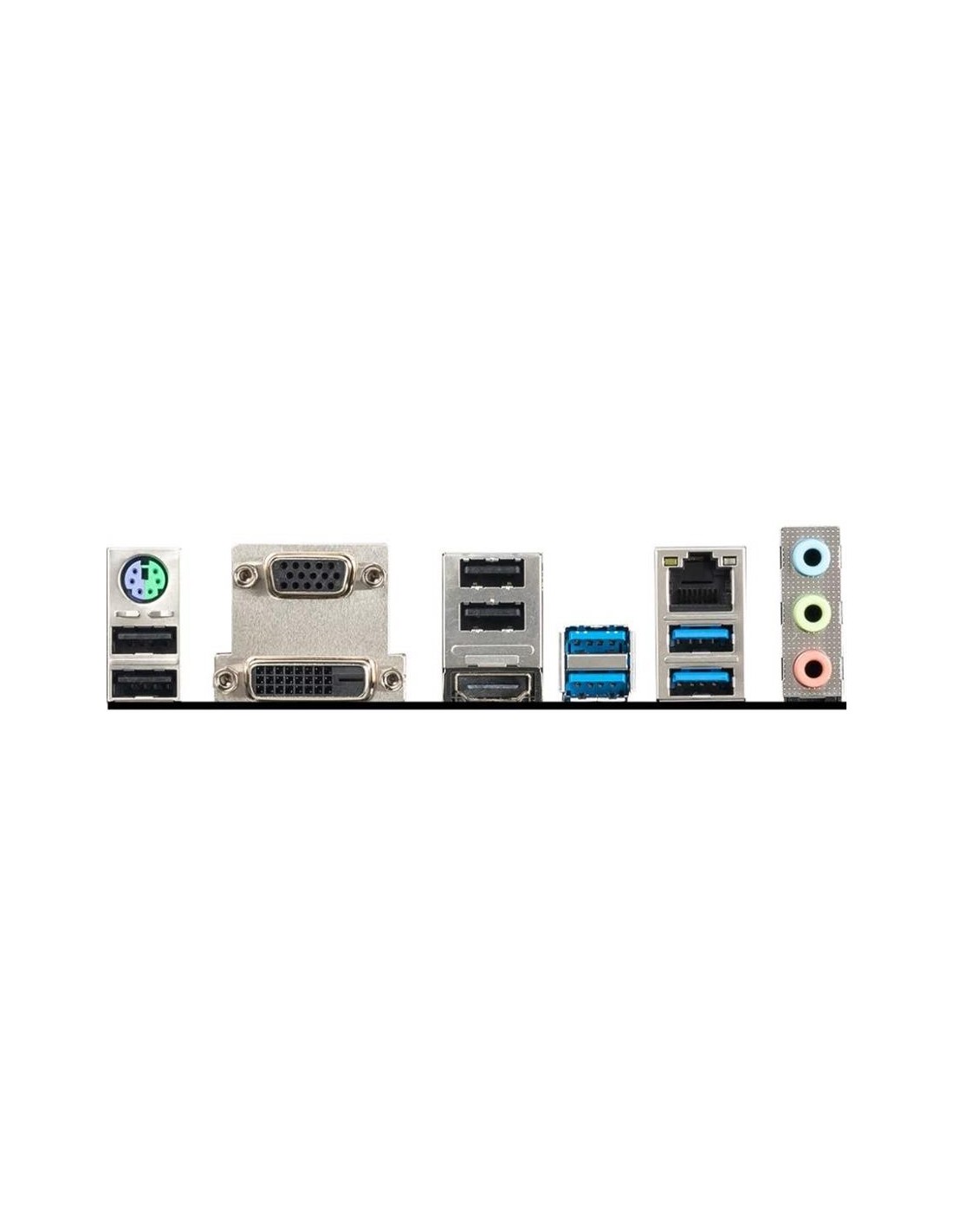

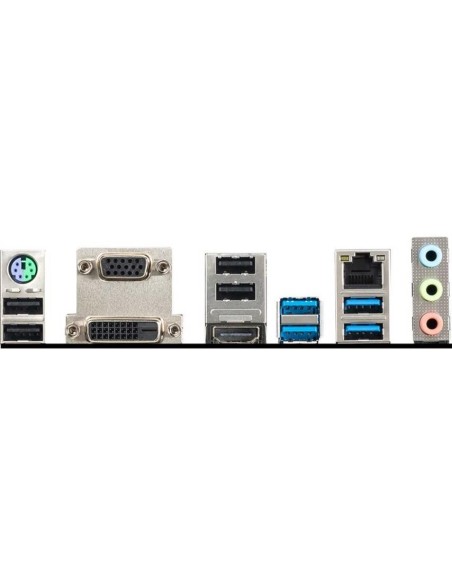

ONBOARD GRAPHICS

1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1,2<
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2<
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2<
Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processorsMaximum shared memory of 2048 MB

STORAGE

AMD® B450 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID1 and RAID 10
1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices

USB

AMD® B450 Chipset
2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
AMD® processor
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN

1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED strip connector
1 x Clear CMOS jumper

DIMENSIONS

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
m-ATX Form Factor
