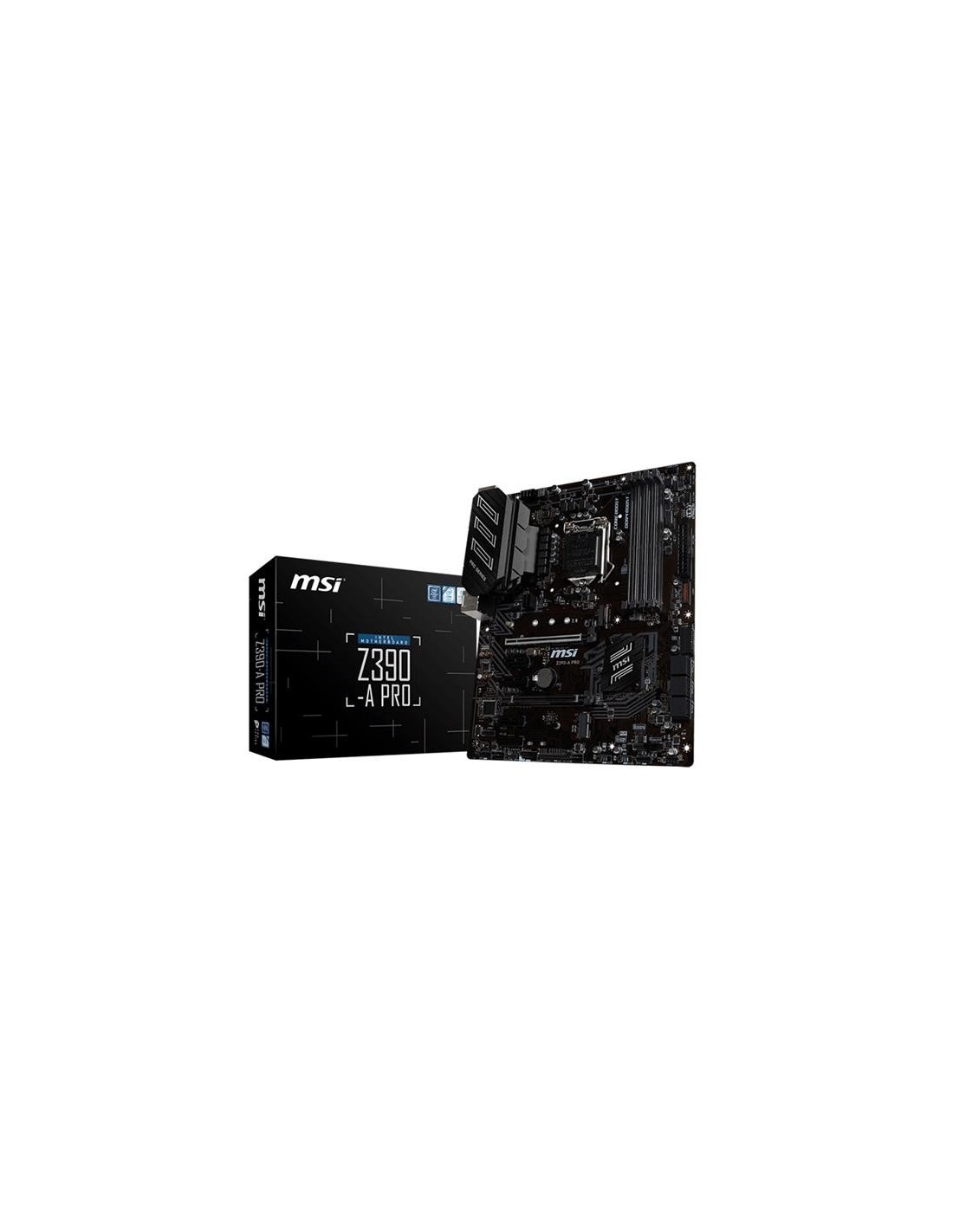

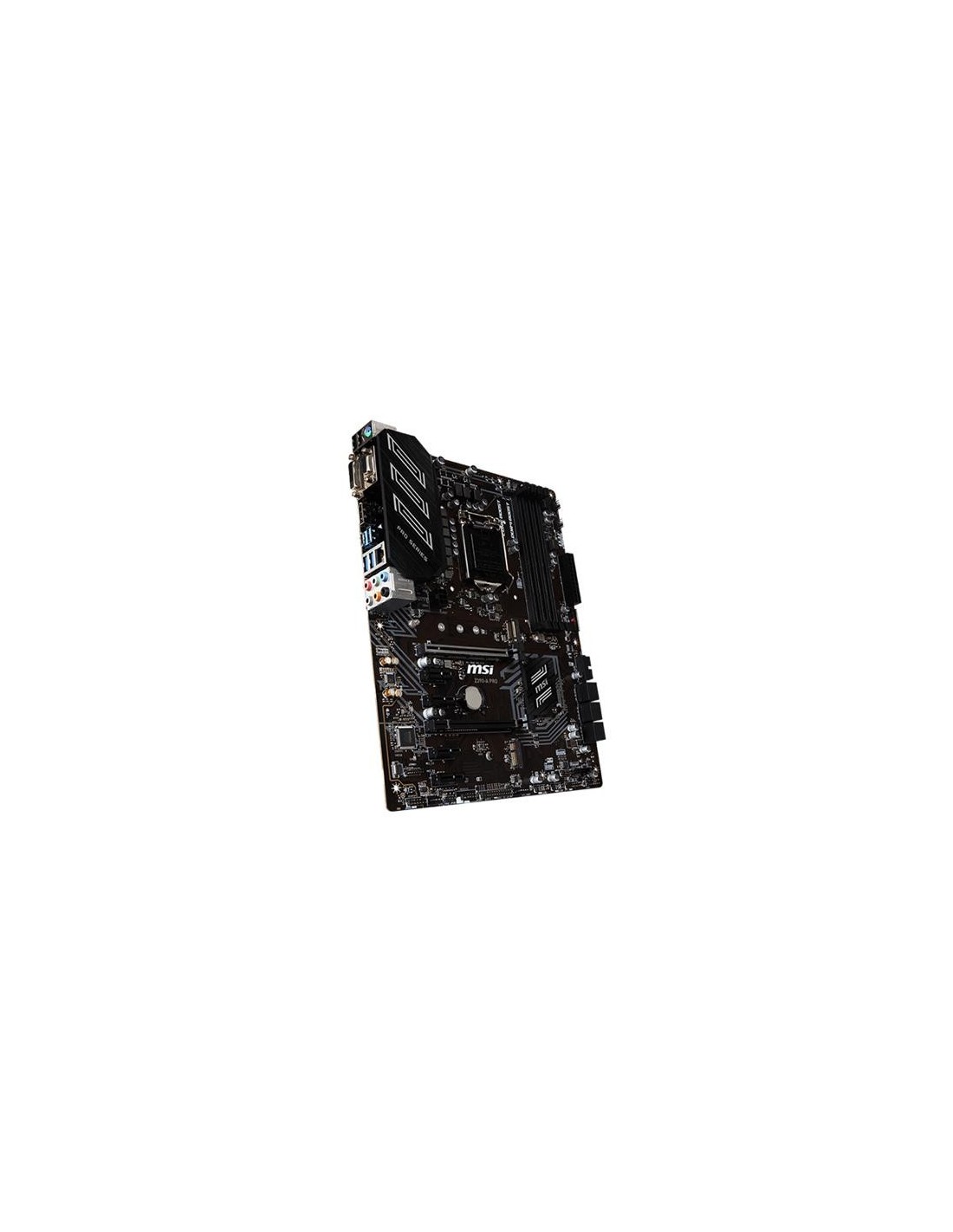

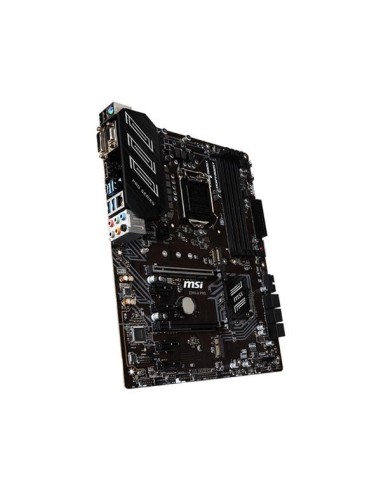

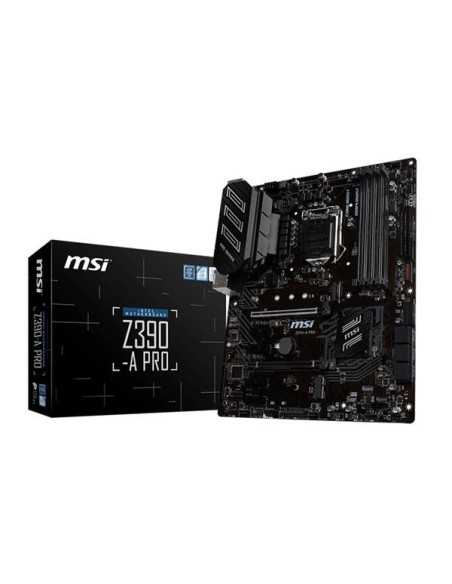

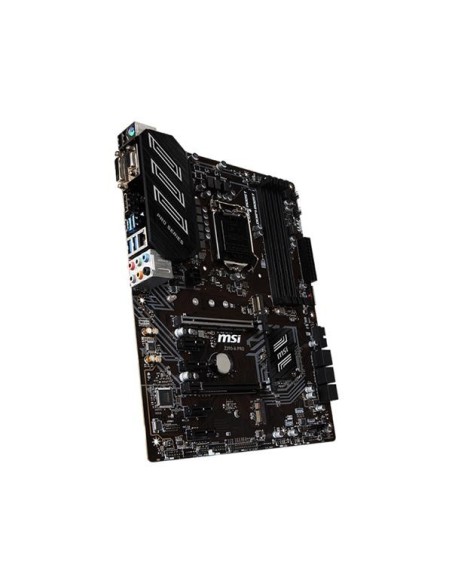

Msi placa base mpg z390-a pro atx lga1151

Especificaciones técnicas:
CHIPSET: INTEL Z390
FORMATO: ATX
HDMI: NO
IMAGEN SALIDA: GRAFICOS EN CPU, DVI-D , VGA, DISPLAYPORT
MEMORIA MAXIMA: 64 GB
MICROPROCESADOR INTEGRADO: NO
MULTI-GRAFICA: 2 x AMD CrossFireX
Nº BANCOS DE MEMORIA: 4
Nº CONEXIONES SATA: 6
Nº USB 2.0: 2 TRASEROS, 2 INTERNOS
Nº USB 3.0: 2 TRASEROS, 2 INTERNO
Nº USB 3.1: 1 TRASERO TIPO C, 1 TRASERO 3.1
PCI: 2 PCIe x16, 4 PCIe x1
RAID: SI
SATA 6GB/s: 6
SOCKET: INTEL LGA1151
SOPORTA OPTANE: SI
TECNOLOGIA DE MEMORIA: DDR4
TIPO DE RAID: 0,1,5,10
USB 3.0: SI
USB3.0 INTERNO: SI
USB3.1 INTERNO: NO


Especificaciones:

Procesador

Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

Chipset

Intel® Z390 Chipset

Memoria

4 x DDR4 memory slots, support up to 64GB
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Supports Dual Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Slots

2 x PCIe 3.0 x16 slots
4 x PCIe 3.0 x1 slots
1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only

Gráficos

1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz

Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Almacenamiento

Intel® Z390 Chipset
6 x SATA 6Gb/s ports
1 x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
Intel® Optane™ Memory Ready

RAID

Intel® Z390 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel® Z390 Chipset
2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN

1 x Intel® I219-V Gigabit LAN controller

Conectores internos

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x M.2 slots (1 M-Key slot,1 E-Key slot)
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 4-pin RGB LED connector
1 x Serial Port connector
1 x Clear CMOS jumper
1 x Parallel port connector
1 x TPM module connector
1 x thunderbolt Add-on card connector
1 x Front OC button connector

Puertos traseros

PS/2 Combo
VGA
USB 3.1 Gen2 Type A+C
LAN
HD Audio Connectors
USB 2.0
DVI-D
Displayport
USB 3.1

Dimensiones

(30.5 cm x 24.4 cm)
ATX Form Factor

Sistema operativo

Support for Windows® 10 64-bit
